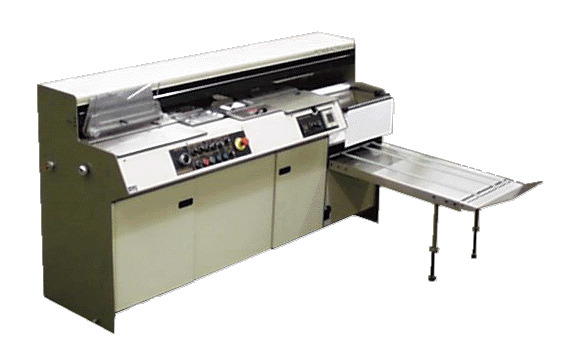

880 PerfectBinder
Fully operator oriented, the 880 combines dependability and flexibility.
Consistent top-quality professional results can be achieved easily with
minimum training.
Now, printers and bookbinders can have everything they seek in a perfect
binding operation:
-- Excellent productivity --
-- High quality square spine book binding --
-- Quick change-over --
-- Controlled labor costs --
NEW!
INNOVATIVE FEATURES
Vertical Stacking Delivery
Delivering perfect bound books in a vertical position.
Heat Control Timer
-- 24 hour 7 day programmable timer eliminates time wasted waiting for gluepot to
reach temperature
-- Easy to read display shows time and output state
-- 10 year battery backup for memory protection
-- Override switch on panel front disables timing function when desired.
Temperature Controller
-- PID (proportional/integral/derivative) process control with auto-tuning and
pulsed output for precise temperature control
-- Dual display shows set-point and glue temperature
-- Automatic lockout of glue rollers during heating
-- Set-point temperature is selected by the operator
880 PerfectBinder Specifications:
Minimum Book Thickness: 1/8" (3mm)
Maximum Book Thickness: 2" (50mm)
Minimum Spine Length: 4" (101mm)
Maximum Spine Length (see special below): 15-1/2" (393mm)
Minimum Page Width: 2-1/2" (63mm)
Maximum Page Width: 12" (304mm)
Maximum Spine Milling Depth: 5/32" (4mm)
Cycle speed: 600 cycles/hour
Height: 43-1/2" (1,11m)
Width: 84" (2,13m)
Length (with conveyor delivery attached): 69" (1,75m)
Net Weight: 850 lbs. (386kg)
Shipping Weight: 1315 lbs. (596kg)
Export shipping weight: 1530 lbs. (694kg)
Milling head motor: 3 HP
Standard electrics: 230**V/60Hz/3 phase, 30AMP service recommended
*Contact ROSBACK
for alternate electrical requirements.
**If voltage is lower than 230 volts, customer should provide a minimum .750VA 'BUCK AND
BOOST' transformers
880 PerfectBinder Options:
Drop Tray Delivery
Vertical Stack Delivery
Vacuum Cover Feeder Model 885
Padding Attachment
Retro-fit chain guard attachment
Glue, Box (48lb.), R-611
Padding Glue Box (48lb.), R-911
Special Extended 880 PerfectBinders
available
17" (432mm) Maximum Spine Length
19-1/2" (495mm) Maximum Spine Length
