Ideal for the short-run, on-demand market, the ROSBACK 850 Perfect Binder/Padder lets you select the level of automation to match your bindery needs.

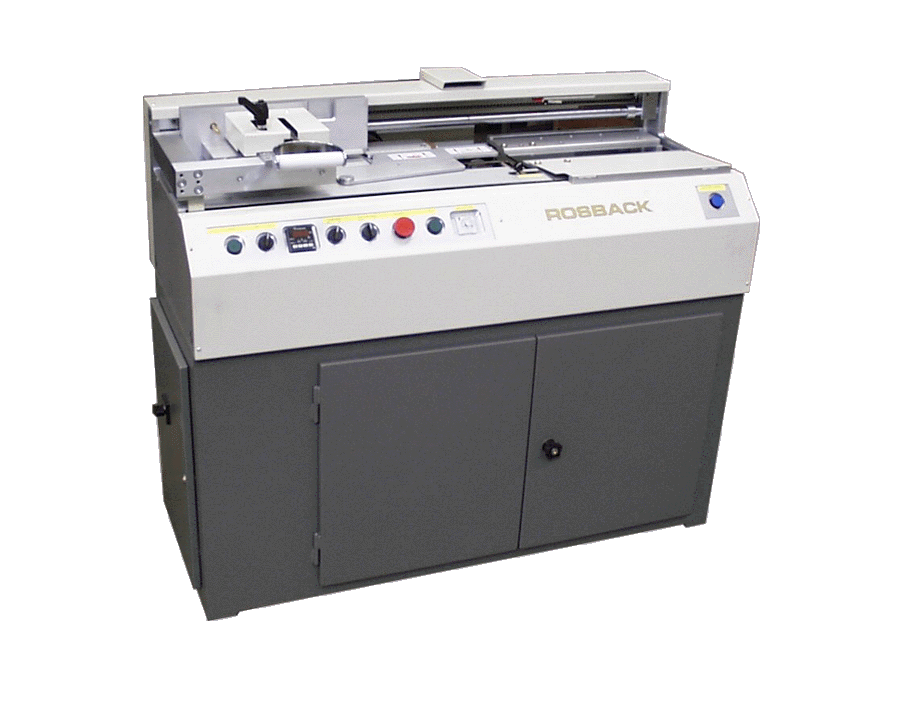

850 PerfectBinder

The 850's simple, heavy-duty, single clamp adjusts for spines from 4 sheets up to 2" thick in a matter of seconds.  In-line notching produces the strongest binds by allowing adhesive to penetrate the spine.  Flip one switch to turn notching off and produce pads with equal efficiency.

The 850's precise cover nipper adjusts to the book thickness automatically, to produce square, tight spines on books up to 15" long.  Easy for one person to operate.    The 850 comes with a side gluer and plugs into normal 110 Volt circuits.

Affordable, strong, reliable, easy semi-automatic operation - the ROSBACK 850 can be the exact perfect binder you need to create long profits on short runs.

Fully operator oriented, the 850 combines dependability and flexibility.    Consistent top-quality professional results can be achieved easily with minimum training.

Now, printers and bookbinders can have everything they seek in a perfect binding operation:
-- Quick setup/changeover for short run, on demand publications --
-- Safe, smokeless, odorless operation requires little adjustment --
-- Strong, square spines up to 15" long --
-- Precision nipper automatically senses and adjusts to book thickness --
-- Notching easily switched off for padding --
-- Rugged construction for years of trouble-free operation --
-- Compact size puts a lot of profit in very little space --

850 PerfectBinder Specifications:

Minimum Book Thickness: 4 sheets
Maximum Book Thickness: 2" (50mm)
Maximum Spine Length: 15" (380mm)
Cycle speed, maximum: 450 cycles/hour
Average production speed: 200 books/hour
Height: 17" (43cm)
Width: 19.7" (50cm)
Length: 45.3" (115cm)
Net Weight: 225 lbs. (103kg)
Shipping Weight: 325 lbs. (148kg)
Milling head motor:  3 HP
*Standard electrics:  110/120V - 60Hz/3 phase, 15AMP service recommended
*Contact ROSBACK for alternate electrical requirements.

Other 850 PerfectBinder Basic Features:

Single, manual clamp
Manual nipping
Bench top setup
Notching
Side gluing
One person operation

850 PerfectBinder Options:

Caster-mounted floor stand
Vibrating clamp jogger
Auto-clamp
Milling
Auto-nipping
Fume/chip exhaust
Glue, Box (48lb.), R-611
